Machine

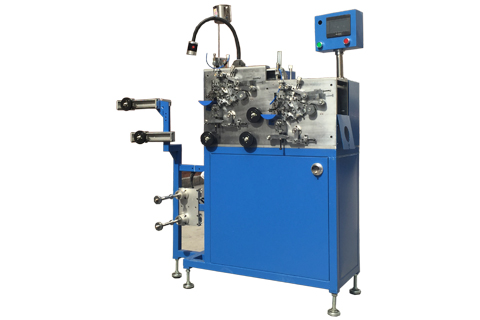

Technical Parameters of CNC-Z05 Computerized Electric coiling Machine

Name

Parameter

Name

Parameter

Coilable heating Wire Diameter

Φ0.10---Φ0.6mm

Coilable steel wire Diameter

Φ0.10---Φ0.5mm

Coil Diameter

≤Φ12mm

Coil direction

Right

Feeding axis command value

±1~±999999

Feeding length

Unlimited

Wire feeding speed

≥60m/min

Cam command value

±0.24°~±360°

Camshaft speed

≥130trun/min

Feeding servo motor

0.5KW

Cam servo motor

0.5KW

Power supply

220V 50HZ

Weight of machine

2500Kg

Dimension

800*900*1350mm

Production range

Various variable or constant diameter ,with or without spacing electric heating coils

Electrical Characteristics

Using industrial-grade computer board control system, 4-inch LCD display, accurate, safe and reliable
