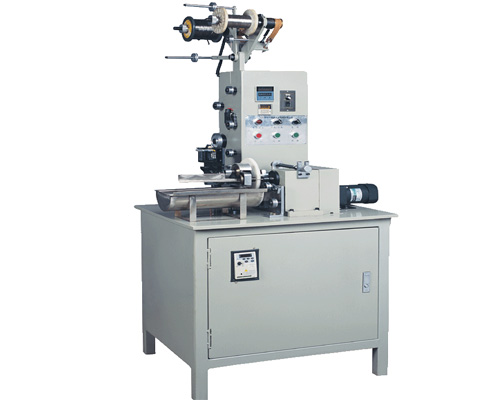

Working principle:

The mandrel and the wheel rotate to drive the heating wire to spiral around, so that the heating wire is spiraled; when the preset setting value is reached, the cutting action cuts the formed wire.

Main performance characteristics:

1. Simple operation;

2, Preset counting, easy to adjust;

3. Easy to change the wire;

4. The machine stop automatically when the wire is broken;

5. Output setting;

6, The machine stop automatically when the output achieves;

Main technical parameters:

1. Power supply: single phase 220V, 50Hz, 0.37Kw;

2, Spindle speed: adjustable speed MAX1800rpm / min; (02 type is not adjustable)

3, Coiling wire diameter: φ0.1 ~φ0.8;

4, Mandrel specifications: fixture positionφ6.0 (Coiling diameter according to requirements);

5, Cutting knife mode: electromagnetic rapid cut;

6, Dimensions: 600mm × 750mm × 1500mm; Weight: 120kg
